Regelkreis der Abfallverbrennung: Das inspect pro control W-System berechnet aus den Bilddaten von Brennbett und Ausbrennzone die prozessrelevanten Kenngrößen. Daraus ermittelt es aktuelle Parameter, mit denen der Verbrennungsprozess optimiert geregelt wird.

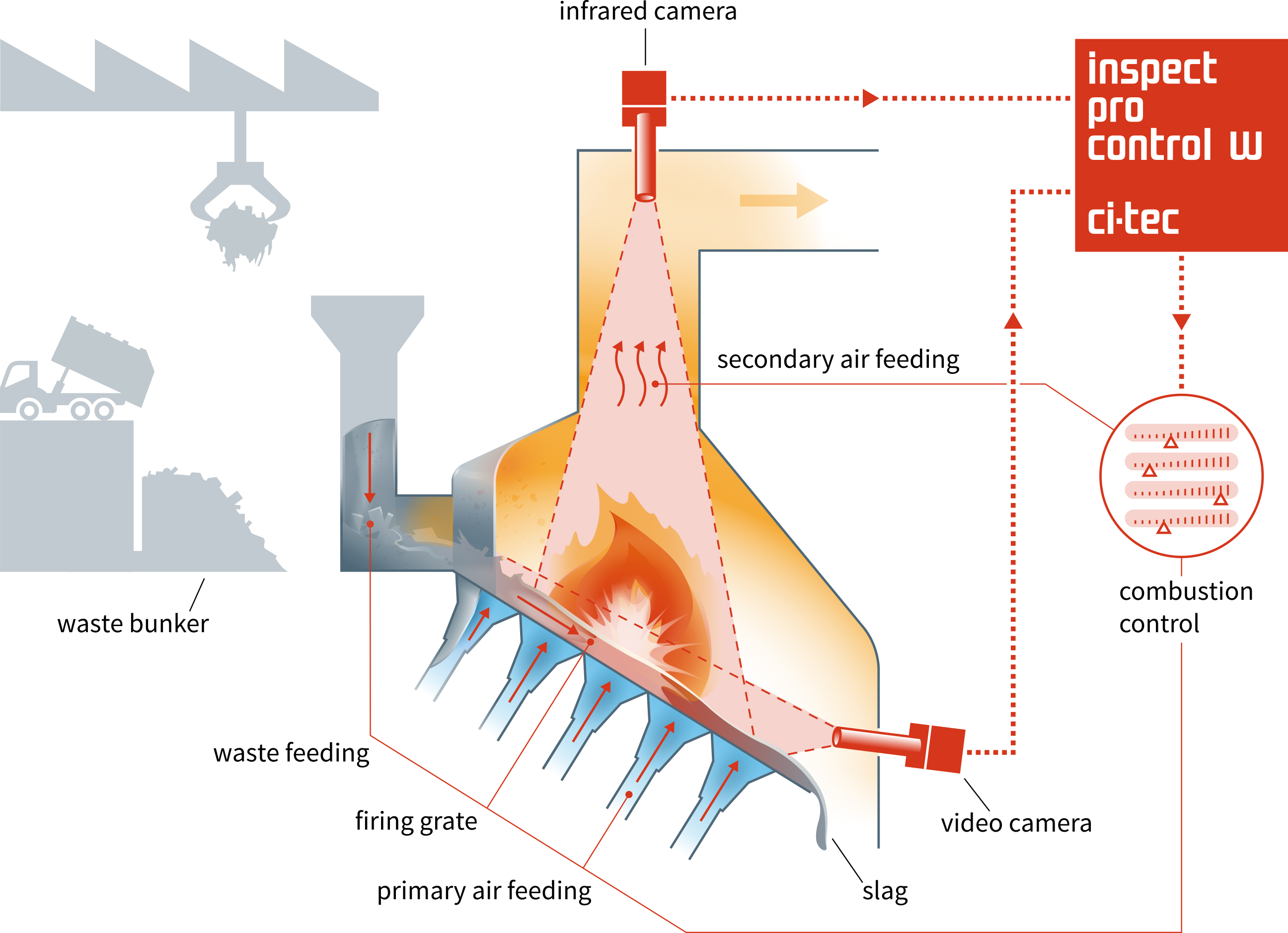

Waste incineration control system: inspect pro control W system computes the relevant process-related characteristics from the image data measured in the burning bed and burnout zone. It then calculates current parameters needed to optimize the combustion process.

Advantages of inspect pro control W

  • Increased efficiency
  • More homogeneous steam output
  • Less pollutants

Contact us

inspect pro control W

Enhancing efficiency based on infrared and video data

inspect pro control W acquires and analyzes the signals from infrared camera systems monitoring the burning bed on the grate or, as an option, from video cameras tracking the burnout zone and flame fluctuations. The system preprocesses the data to calculate the characteristics needed to optimize the waste feeding, air supply, transport speed on the grate, and firepower.

More homogeneous incineration thanks to intelligent process control for increasing the effectiveness of solid-waste burnout

The innovative inspect pro control W system is based on research conducted at the Karlsruhe Institute of Technology. It has been implemented successfully all around the world since 2000. The system calculates up to 50 characteristics about the combustion process from infrared or existing video camera signals. This information is used to calculate and update parameters for controlling combustion, e.g., feed quantity, transport speed, firepower, and air supply. In parallel, they are transmitted to the automation system. The efficiency of the entire incineration system is thus increased, and losses in steam production are prevented reliably.

Installation in your plant

inspect pro control W can be used to retrofit all standard plants. Moreover, it can be integrated into manual process control by equipment operators and automated systems.
